Diaphragm Seal
download brochure
Home
Diaphragm Seal
DIRECT COUPLED TYPE SEAL (DDS)
Read More
HEAVY DUTY MINI SEAL (DHM)
Read More
THREADED FLUSH SEAL (FDT)
Read More
TRI CLOVER
Read More
SANDWICH FLUSH DIAPHRAGM (SDS)
Read More
DIRECT FLUSH FLANGE SEAL (DFF)
Read More
FLUSH DIAPHRAGM WITH ROTATABLE FLANGE
Read More
EXTENDED DIAPHRAGM WITH ROTATABLE FLANGE
Read More

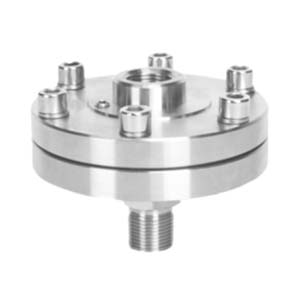

DIRECT COUPLED TYPE SEAL (DDS)
×
Application
: The purpose of a diaphragm seal is to isolate a pressure measuring instrument from the process media.
Type
: Direct Coupled Type Diaphragm Seal
Connection
: Threads As per Customer Requirements 1/4" to 1" NPT / BSP or Any Other Threads on Request
MOC
: SS 304, SS 316, SS 316L, Hestalloy C, Tentalum etc...
Pressure Range
: Vacuum (-1 bar ) upto 70 bar & 100 bar upto 250 bar
For More Details Please Refer Our Detailed Product Catalogue. Ask for Catalogue or Download from our Web Site.

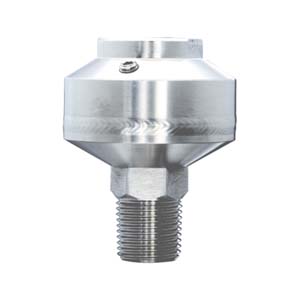

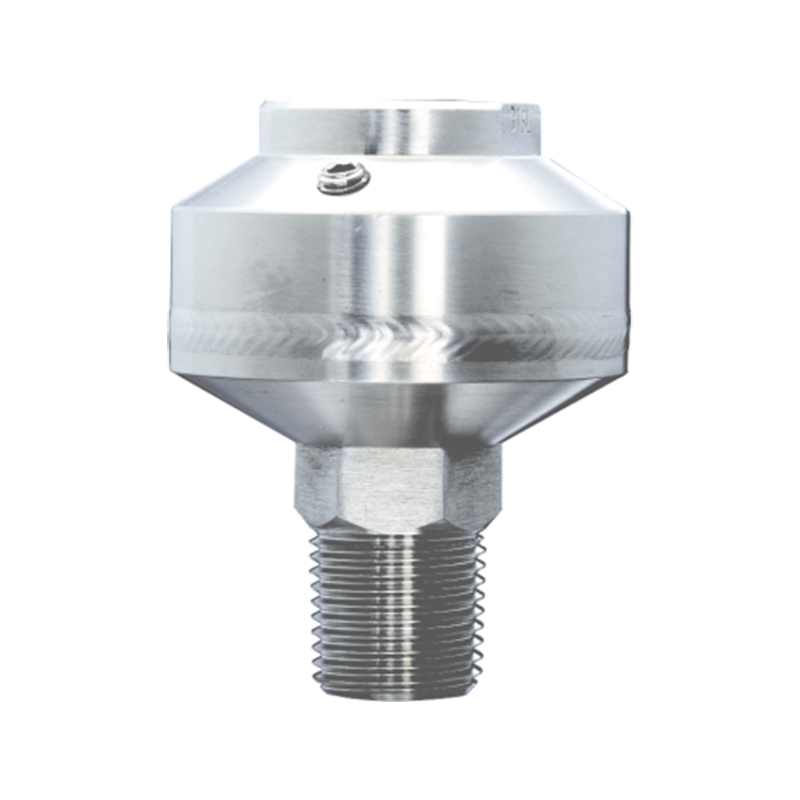

HEAVY DUTY MINI SEAL (DHM)
×
Application
: The purpose of a diaphragm seal is to isolate a pressure measuring instrument from the process media.
Type
: All Welded Construction Diaphragm Seal
Connection
: Threads As per Customer Requirements 1/4" to 1" NPT / BSP or Any Other Threads on Request
MOC
: SS 304, SS 316, SS 316L, Hestalloy C, Tentalum etc...
Pressure Range
: Vacuum (-1 bar ) & Pressure 1 bar upto 700 bar
For More Details Please Refer Our Detailed Product Catalogue. Ask for Catalogue or Download from our Web Site.

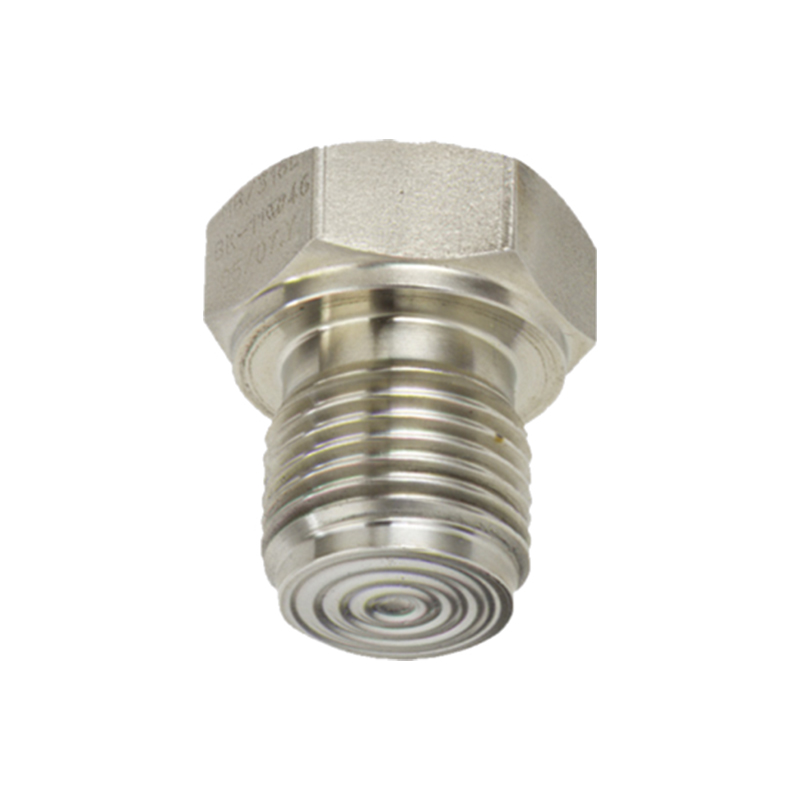

THREADED FLUSH SEAL (FDT)
×
Application
: The purpose of a diaphragm seal is to isolate a pressure measuring instrument from the process media.
Type
: Threaded Flush Diaphragm Seal
Connection
: Threads As per Customer Requirements 3/4" to 1.5" NPT / BSP or Any Other Threads on Request
MOC
: SS 304, SS 316, SS 316L, Hestalloy C, Tentalum etc...
Pressure Range
: Pressure 1 bar upto 600 bar
For More Details Please Refer Our Detailed Product Catalogue. Ask for Catalogue or Download from our Web Site.

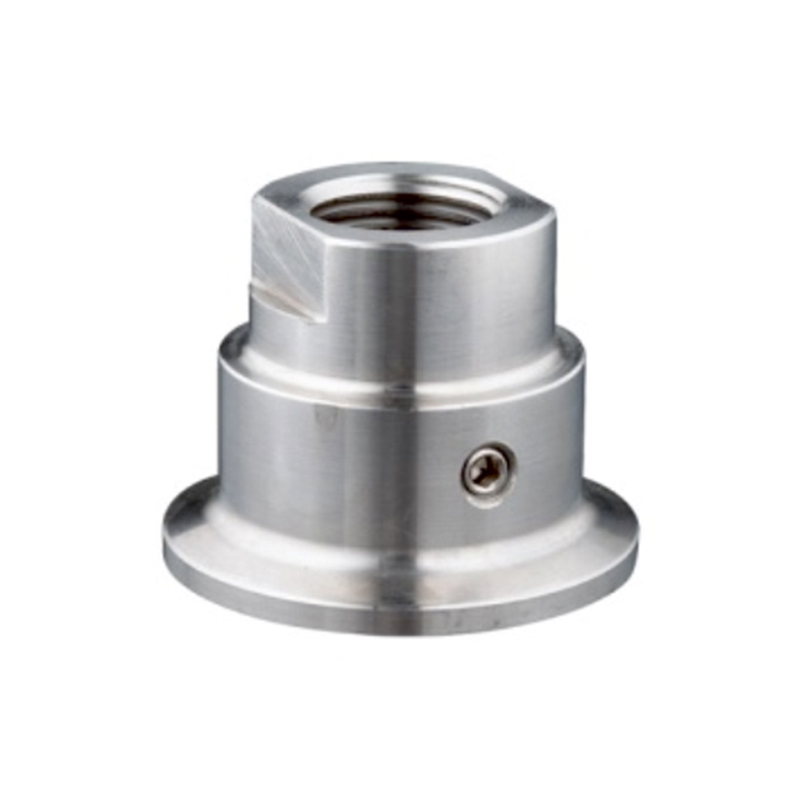

QUICK CLAMP CONNECTION TYPE (TC)
×
Application
: The purpose of a diaphragm seal is to isolate a pressure measuring instrument from the process media.
Type
: Sanitary Diaphragm Seal ( TC & SMS )
Instruments Connection
: Threads As per Customer Requirements 1/4" / 3/8" & 1/2" BSP / NPT / Other Threads on Request
MOC
: SS 316 & SS 316L etc...
Pressure Range
: Pressure 0.6 bar upto 40 bar
For More Details Please Refer Our Detailed Product Catalogue. Ask for Catalogue or Download from our Web Site.

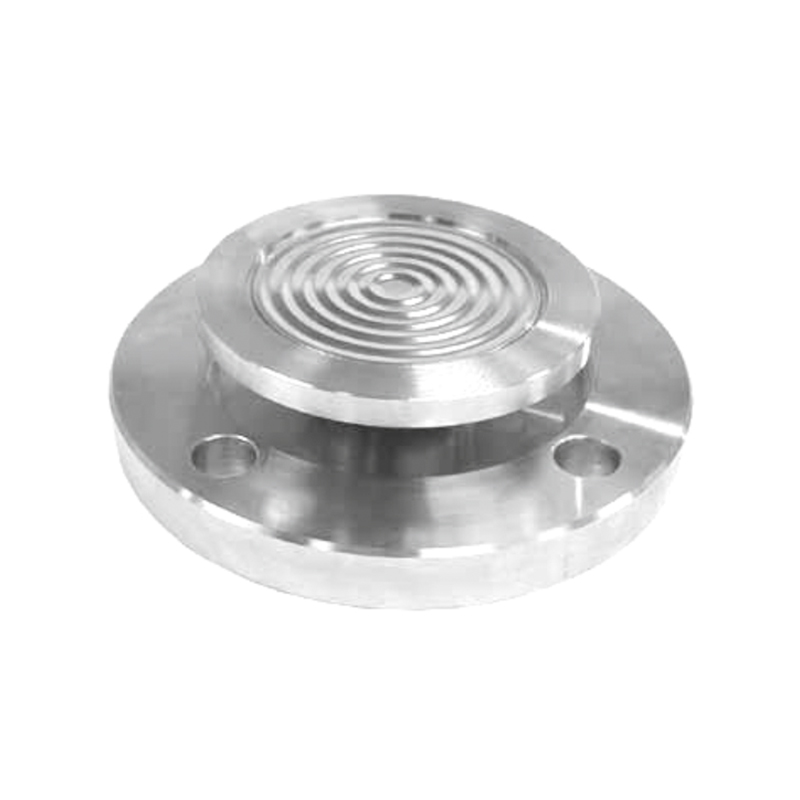

SANDWICH FLUSH DIAPHRAGM (SDS)
×
Application
: The purpose of a diaphragm seal is to isolate a pressure measuring instrument from the process media.
Type
: Sandwich Flush Diaphragm Ideal for Smart Transmitter
Instruments Connection
: 1/4" NPT Male or As Required by Customer
Flange Size and Rating
: As Requested by Customer
MOC
: SS 304, SS 316, SS 316L, Hestalloy C, Tentalum etc...
Pressure Range
: Vacuum (-1) bar & Pressure 0.01 bar upto 16 bar
For More Details Please Refer Our Detailed Product Catalogue. Ask for Catalogue or Download from our Web Site.

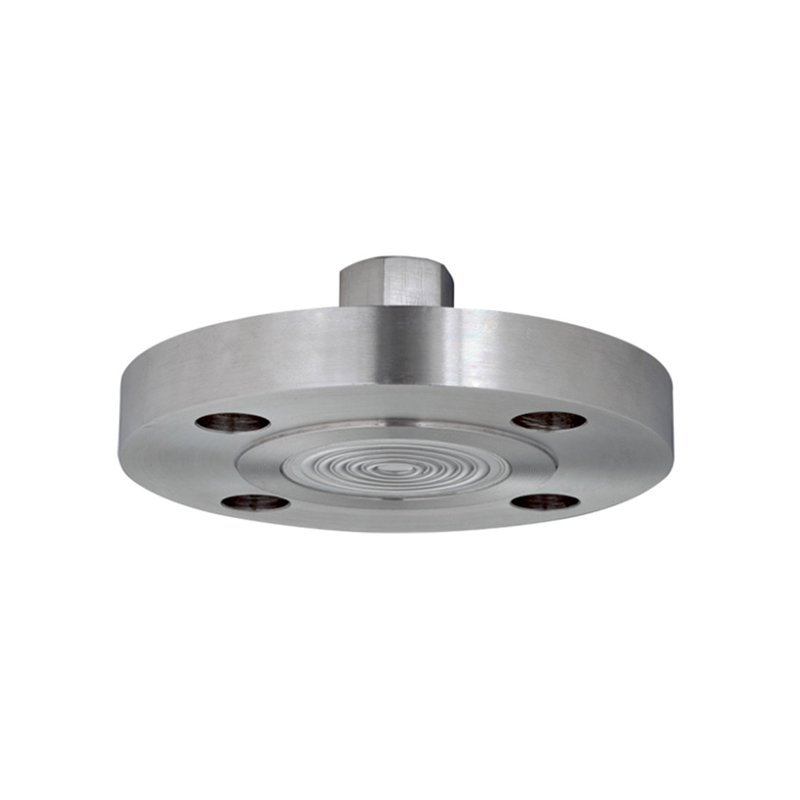

DIRECT FLUSH FLANGE SEAL (DFF)
×
Application
: The purpose of a diaphragm seal is to isolate a pressure measuring instrument from the process media.
Type
: Direct Flush Diaphragm on Flange for PT & PG
Instruments Connection
: 1/4" NPT /BSP Male / Female or As Required by Customer
Flange Size and Rating
: As Requested by Customer
MOC
: SS 304, SS 316, SS 316L, Hestalloy C, Tentalum etc...
Pressure Range
: Vacuum (-1) bar & Pressure 0.01 bar upto 16 bar
For More Details Please Refer Our Detailed Product Catalogue. Ask for Catalogue or Download from our Web Site.
FLUSH DIAPHRAGM WITH ROTATABLE FLANGE
×
Application
: The purpose of a diaphragm seal is to isolate a pressure measuring instrument from the process media.
Type
: Flush Diaphragm With Rotatable Flange
Instruments Connection
: 1/4" NPT /BSP Male / Female or As Required by Customer
Flange Size and Rating
: As Requested by Customer
MOC
: SS 304, SS 316, SS 316L, Hestalloy C, Tentalum etc...
Pressure Range
: Vacuum (-1) bar & Pressure 0.01 bar upto 16 bar
For More Details Please Refer Our Detailed Product Catalogue. Ask for Catalogue or Download from our Web Site.

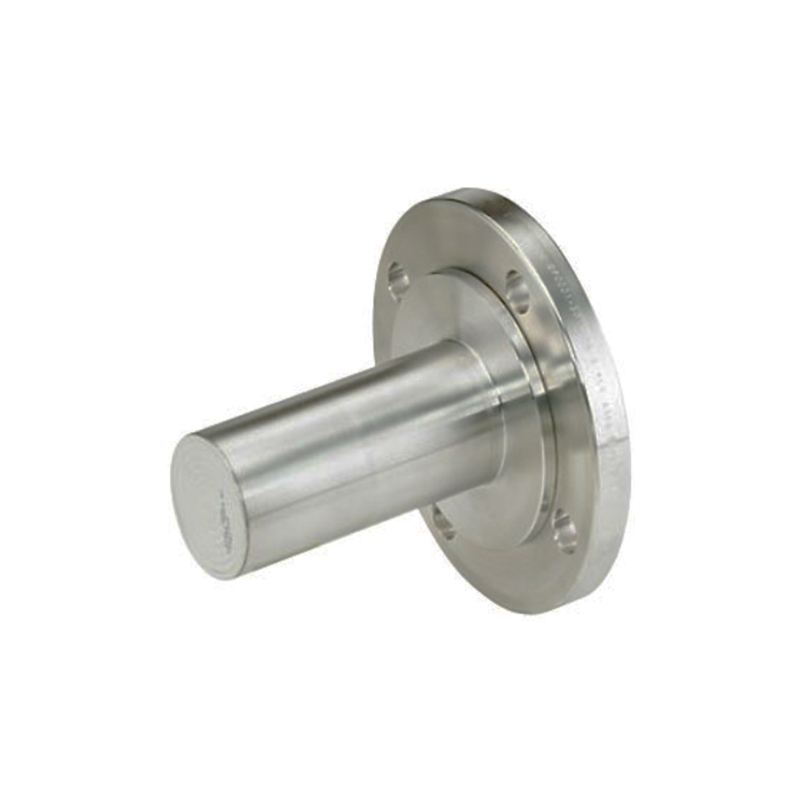

EXTENDED DIAPHRAGM WITH ROTATABLE FLANGE
×
Application
: The purpose of a diaphragm seal is to isolate a pressure measuring instrument from the process media.
Type
: Extended Flush Diaphragm With Rotatable Flange
Instruments Connection
: 1/4" NPT /BSP Male / Female or As Required by Customer
Flange Size and Rating
: As Requested by Customer
MOC
: SS 304, SS 316, SS 316L, Hestalloy C, Tentalum etc...
Pressure Range
: Vacuum (-1) bar & Pressure 0.01 bar upto 16 bar
For More Details Please Refer Our Detailed Product Catalogue. Ask for Catalogue or Download from our Web Site.

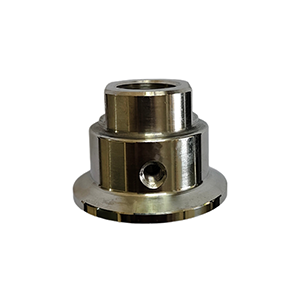

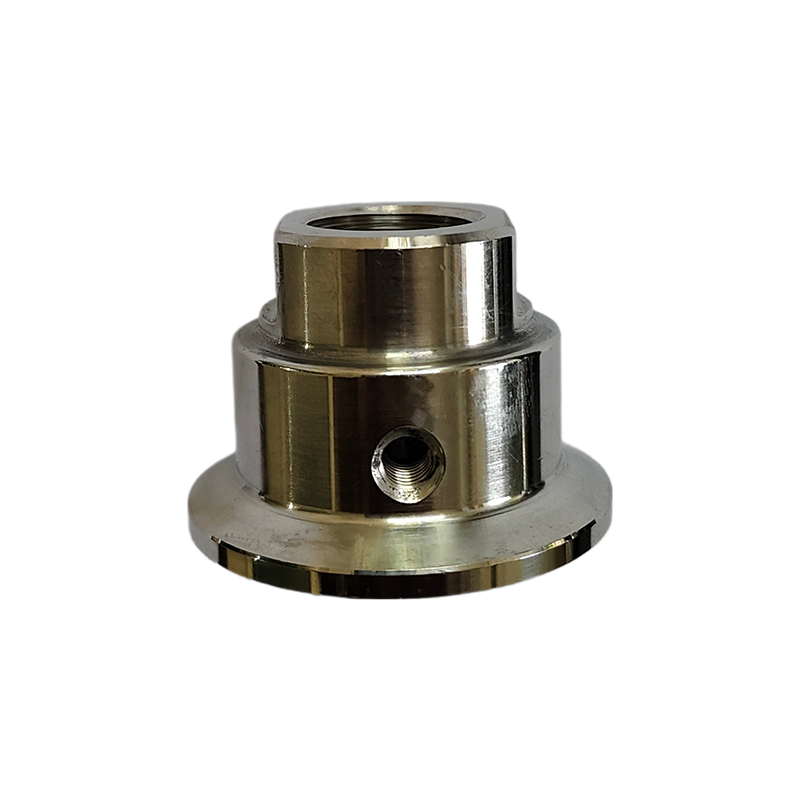

TRI CLOVER
×
Usage / Application
: PHARMA / DAIRY / FOOD / BREWERY INDUSTRY
Size
:1/2" To 12"
Material
:SS
Brand
:Global
End Connections
:TRI CLOVER
Material Grade
:316/304
