Tube Fittings
download brochure
Home
Tube Fittings
MALE CONNECTOR (MC)
Read More
MALE ELBOW 90 DEG (ME)
Read More
MALE ELBOW 45 DEG (ME45)
Read More
MALE RUN TEE (MRT)
Read More
MALE BRANCH TEE (MBT)
Read More
MALE BULKHEAD CONNECTOOR (MBH)
Read More
MALE TUBE ADAPTOR(MTA)
Read More
FEMALE CONNECTOR (FC)
Read More
FEMALE ELBOW 90 DEG (FE)
Read More
FEMALE RUN TEE (FRT)
Read More
FEMALE BRANCH TEE (FBT)
Read More
FEMALE BULKHEAD CONNECTOR (FBH)
Read More
FEMALE TUBE ADAPTOR (FTA)
Read More
UNION TUBE STRAIGHT(U)
Read More
ELBOW UNION 90 DEG (EU)
Read More
TEE UNION 90 DEG (TU)
Read More
CROSS UNION (CU)
Read More
BULK HEAD UNION TUBE(BHU)
Read More
REDUCER TUBE ( RT )
Read More
PIPE BUTT WELD CONNECTOR (PBWC)
Read More
END CLOSURE FOR TUBE (ECT)
Read More
END CLOSURE FOR FITTINGS (ECF)
Read More
SPARE NUT (SN)
Read More
SPARE FERRULE SET (SF)
Read More

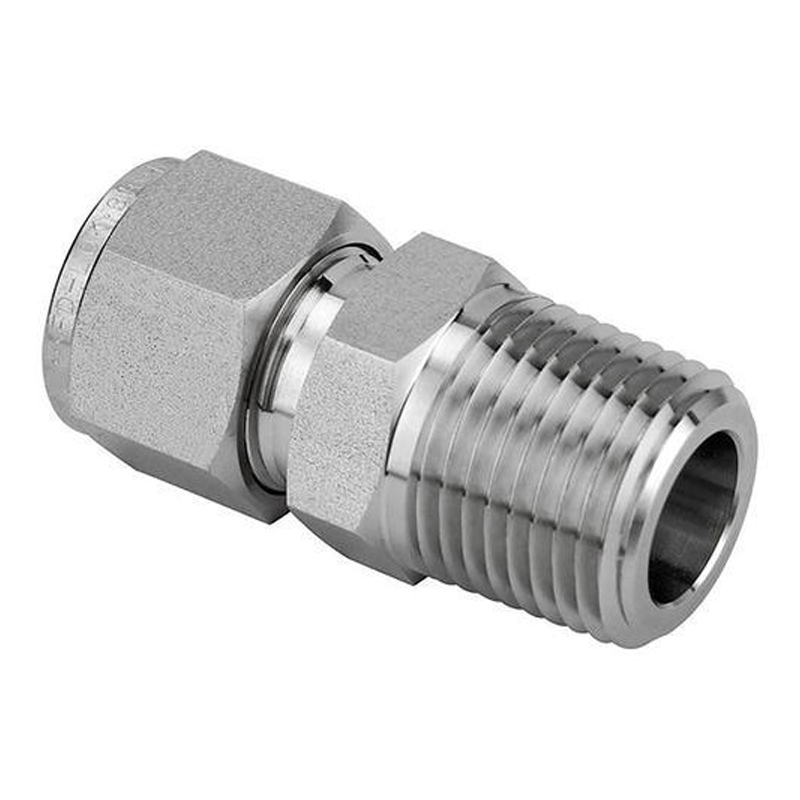

MALE CONNECTOR (MC)
×
End Connection
TOD X MPT
Tube OD Size (TOD)
From 1/8" OD to 2" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Male Pipe Thread Size (MPT)
: 1/8" to 2" NPT Male ( Taper) Threads(BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
Double ferrule design with Nut
MOC
SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
MC - TOD - MPT - MOC

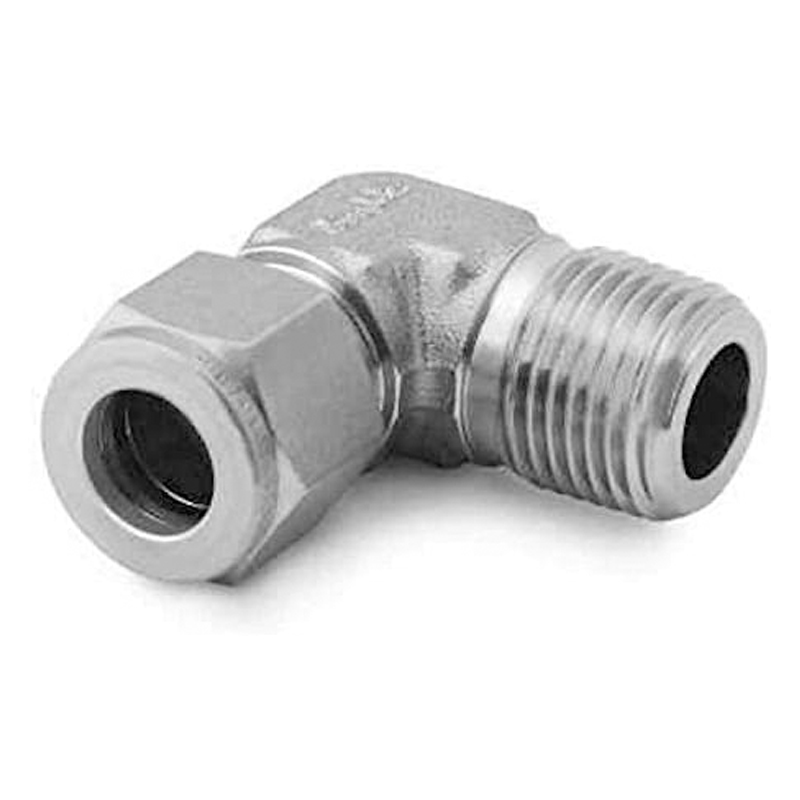

MALE ELBOW 90 DEG (ME)
×
End Connection
TOD X PBW
Tube OD Size (TOD)
: From 1/8" OD to 2" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Male Pipe Thread Size (MPT)
From 1/8" NB to 2" NB
Type
: Double ferrule design with nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: PBWC - TOD - PBW - MOC
MALE ELBOW 45 DEG (ME45)
×
End Connection
: TOD X MPT
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Male Pipe Thread Size (MPT)
: 1/8" to 1.5" NPT Male ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: ME45- TOD - MPT - MOC
MALE RUN TEE (MRT)
×
End Connection
: TOD X MPT x TOD
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Male Pipe Thread Size (MPT)
: 1/8" to 1.5" NPT Male ( Taper) Threads(BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: MRT- TOD1 - MPT - TOD2 - MOC

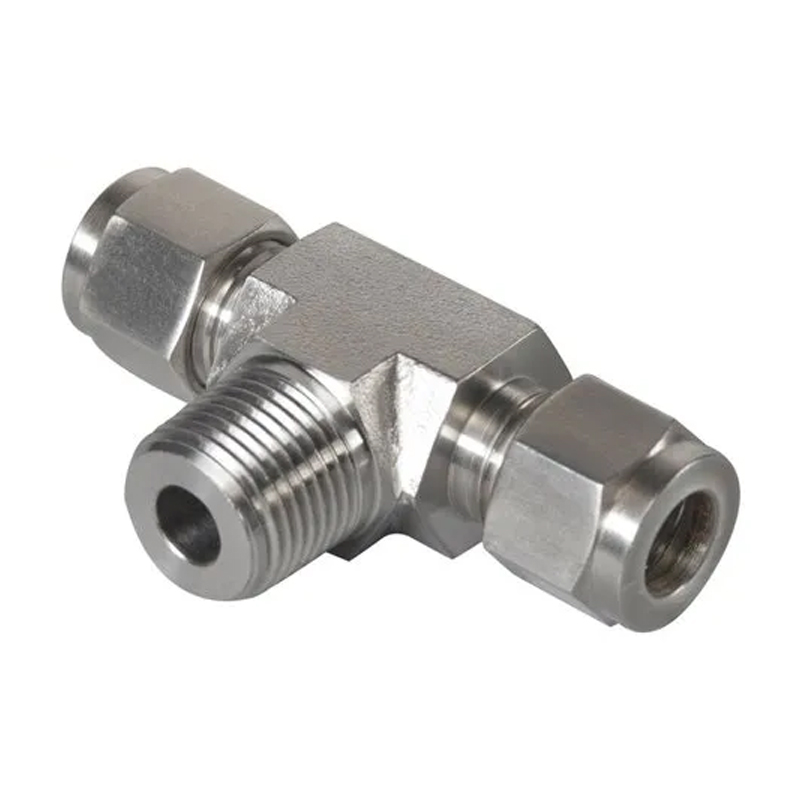

MALE BRANCH TEE (MBT)
×
End Connection
: TOD X TOD X MPT
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Male Pipe Thread Size (MPT)
: 1/8" to 1.5" NPT Male ( Taper) Threads(BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: MBT- TOD1 - TOD2 - MPT - MOC

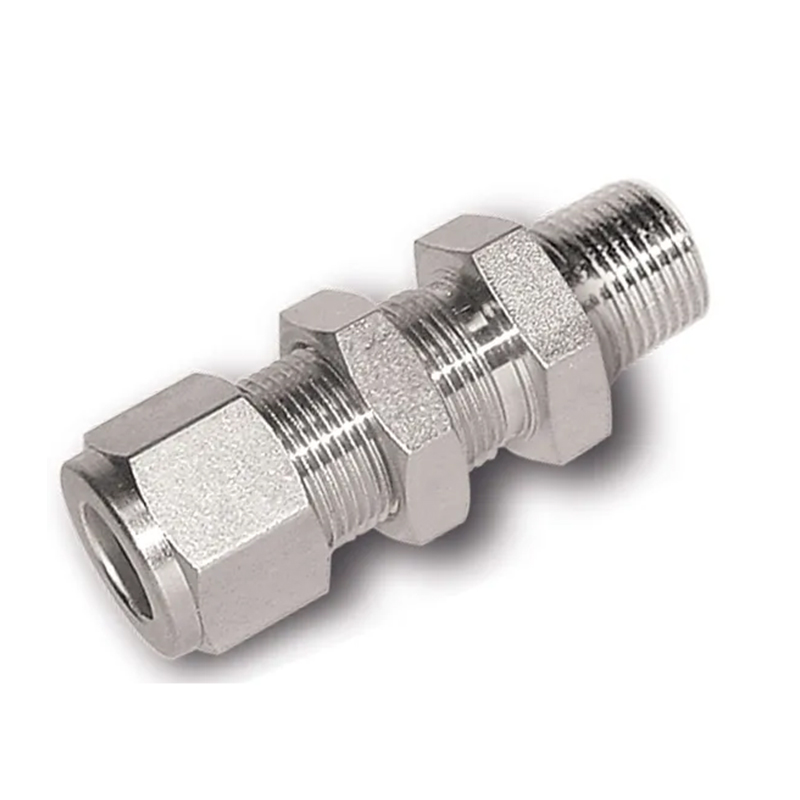

MALE BULKHEAD CONNECTOOR (MBH)
×
End Connection
: TOD X TOD x FPT
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Male Pipe Thread Size (MPT)
: 1/8" to 1.5"NPT Female Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: MBH- TOD1 - FPT - MOC

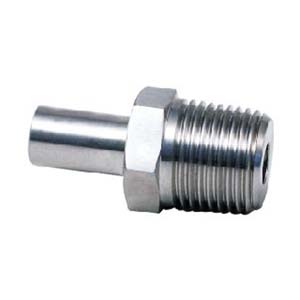

MALE TUBE ADAPTOR(MTA)
×
End Connection
: TPE X MPT
Tube Plain End Size (TPE)
: From 1/8" OD to 2" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Male Pipe Thread Size (MPT)
: 1/8" to 2" NPT Male ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
: Tube plain end suitable for swaging ferrules
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: MTA - TPE - MPT - MOC

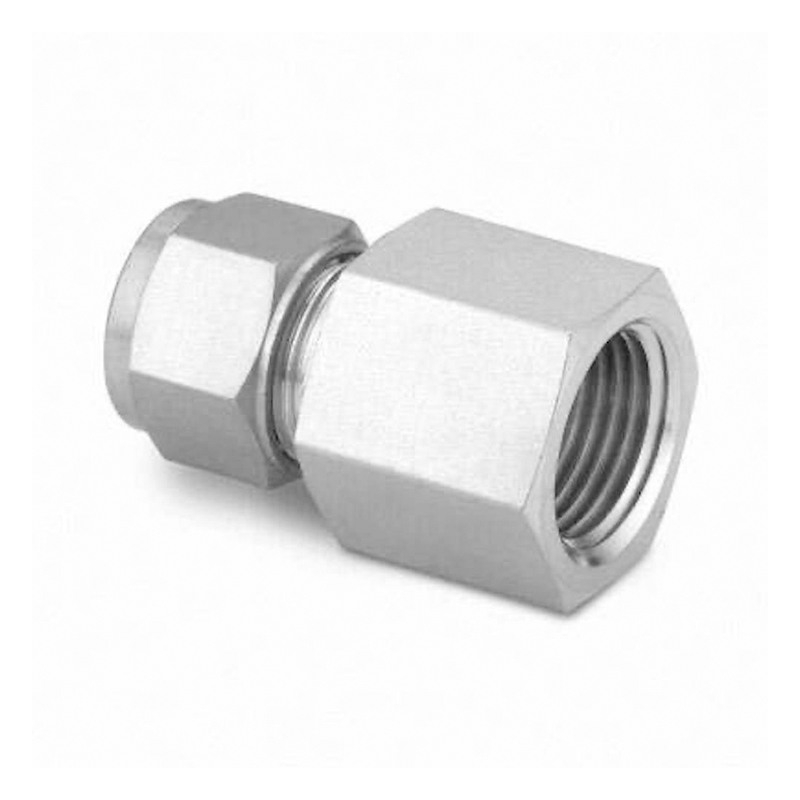

FEMALE CONNECTOR (FC)
×
End Connection
: TOD X FPT
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Female Pipe Thread Size (FPT)
: 1/8" to 1.5" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: FC - TOD - FPT - MOC

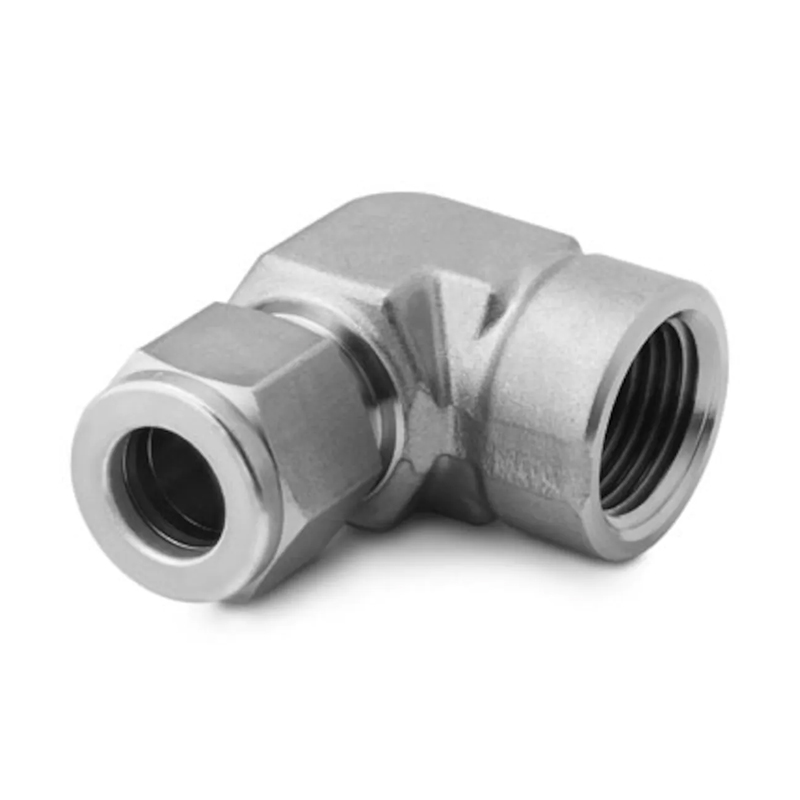

FEMALE ELBOW 90 DEG (FE)
×
End Connection
: TOD X FPT
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Female Pipe Thread Size (FPT)
: 1/8" to 1.5" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: FE - TOD - FPT - MOC

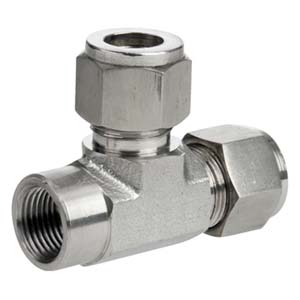

FEMALE RUN TEE (FRT)
×
End Connection
: TOD X FPT x TOD
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Female Pipe Thread Size (FPT)
: 1/8" to 1.5" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: FRT- TOD1 - FPT - TOD2 - MOC
FEMALE BRANCH TEE (FBT)
×
End Connection
: TOD X TOD X FPT
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional)
Male Pipe Thread Size (MPT) From 3mm OD to 38mm OD ( Metric)
: 1/8" to 1.5" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: FBT- TOD1 - TOD2 - FPT - MOC

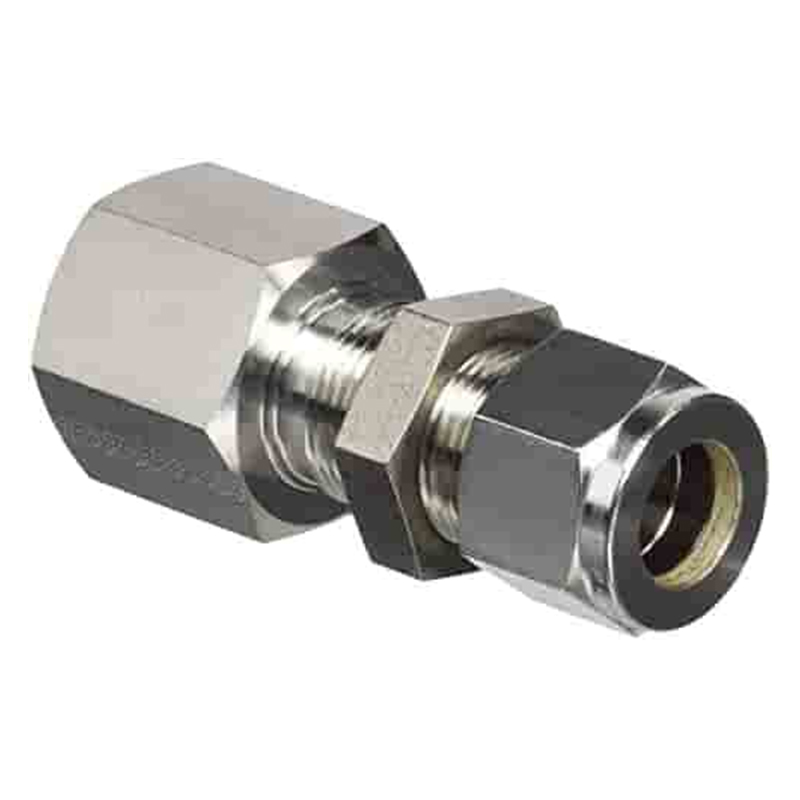

FEMALE BULKHEAD CONNECTOR (FBH)
×
End Connection
: TOD x FPT
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Female Pipe Thread Size (FPT)
: 1/8" to 1.5" NPT Female Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: FBH - TOD - FPT - MOC
FEMALE TUBE ADAPTOR (FTA)
×
End Connection
: TPE X FPT
Tube Plain End Size (TPE)
: From 1/8" OD to 2" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Female Pipe Thread Size (FPT)
: 1/8" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: FTA - TPE - FNPT - MOC

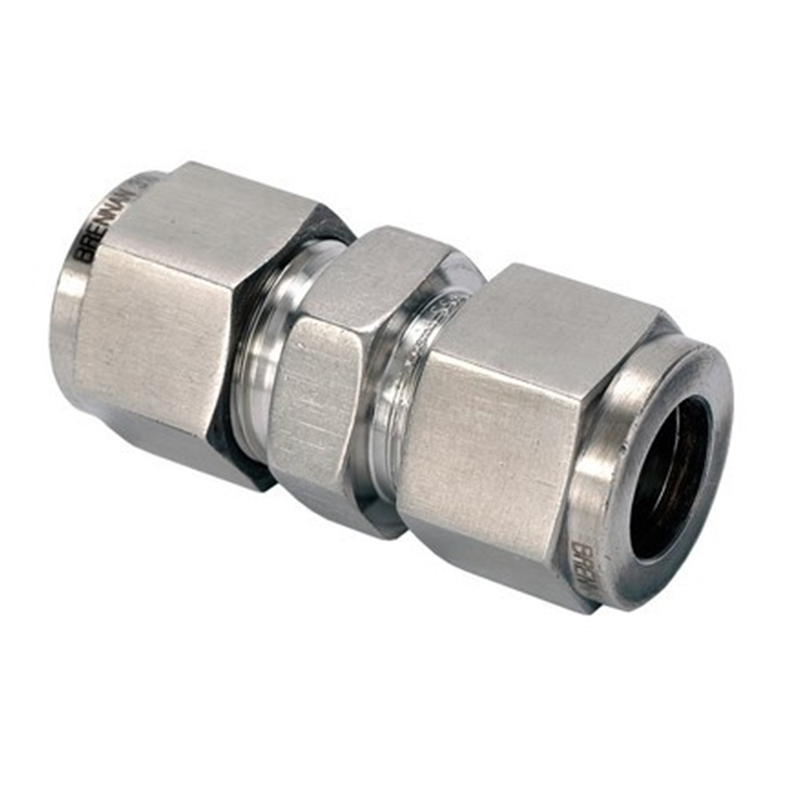

UNION TUBE STRAIGHT(U)
×
End Connection
: TOD X TOD
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
REDUCING UNION OF ALL COMBINATION AVAILABLE
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: U - TOD - TOD - MOC
ELBOW UNION 90 DEG (EU)
×
End Connection
: TOD X TOD
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
REDUCING UNION OF ALL COMBINATION AVAILABLE
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: EU - TOD1 - TOD2 - MOC

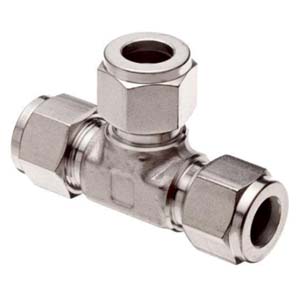

TEE UNION 90 DEG (TU)
×
End Connection
: TOD X TOD X TOD
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
REDUCING UNION OF ALL COMBINATION AVAILABLE
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: TU - TOD1 - TOD2 - TOD3 - MOC

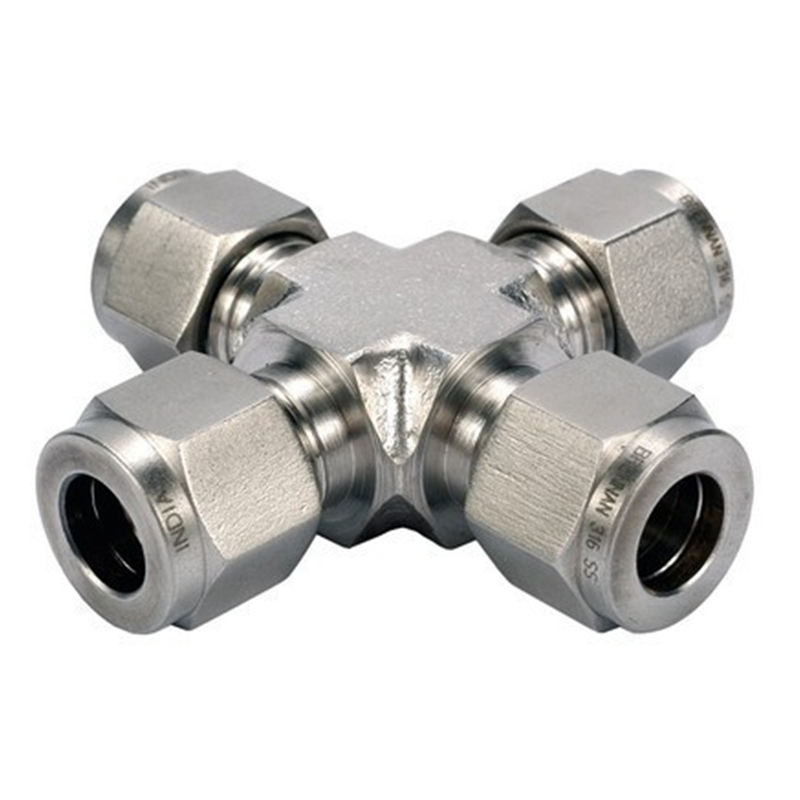

CROSS UNION (CU)
×
End Connection
: TOD X TOD X TOD X TOD
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
REDUCING UNION OF ALL COMBINATION AVAILABLE
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: CU - TOD1 - TOD2 - TOD3 TOD4 - MOC

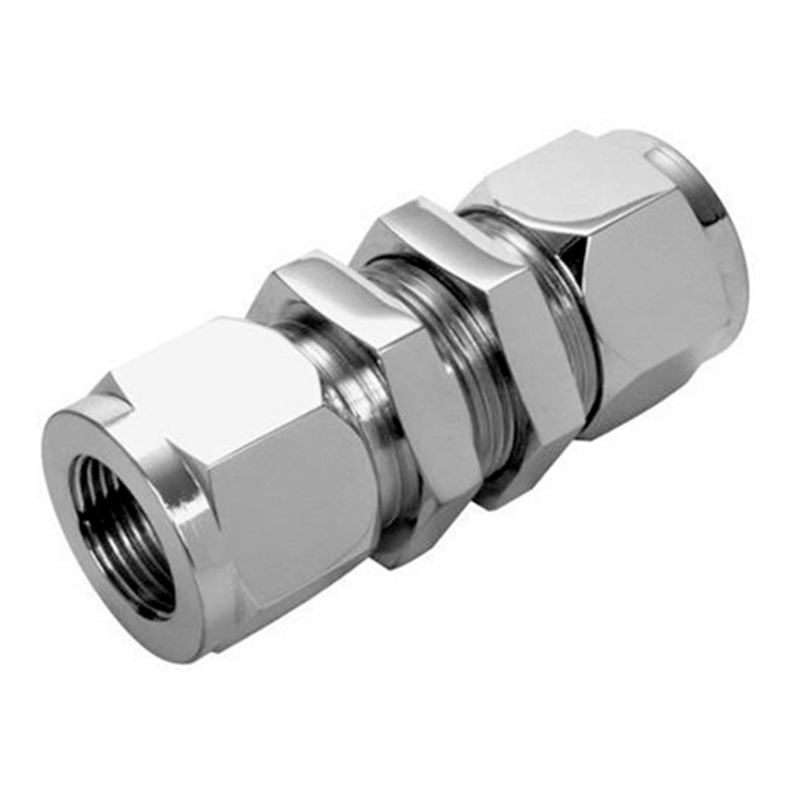

BULK HEAD UNION TUBE(BHU)
×
End Connection
: TOD X TOD
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
REDUCING UNION OF ALL COMBINATION AVAILABLE
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: BHU - TOD1 - TOD2 - MOC

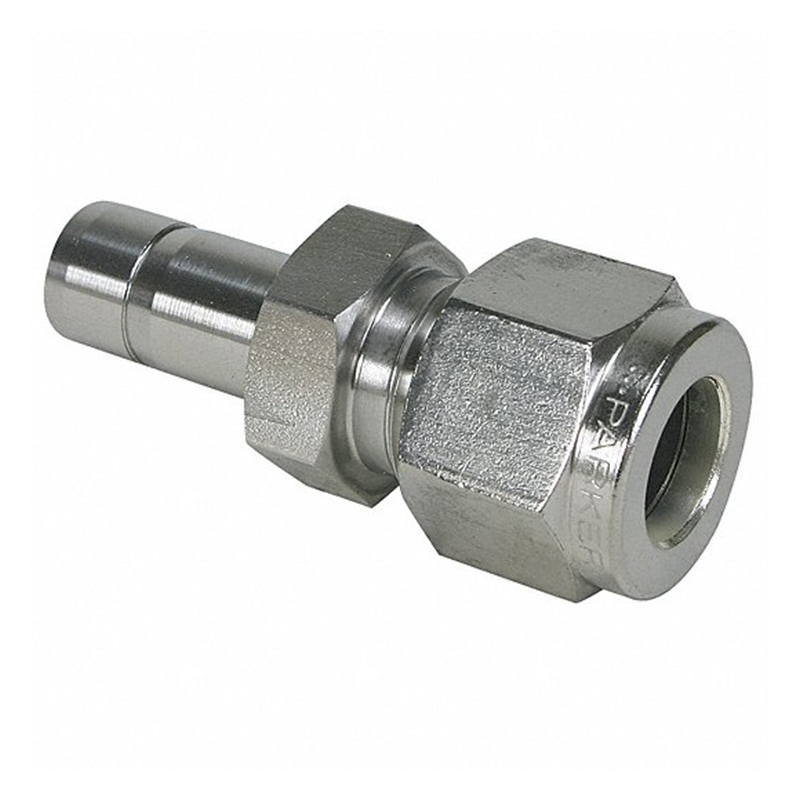

REDUCER TUBE ( RT )
×
End Connection
: TOD X TPE
Tube OD Size (TOD)
: From 1/8" OD to 2" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Tube Plain End Size (TPE)
: From 1/8" OD to 2" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Type
: Tube Plain End suitable for Swaging ferrules
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: RT - TOD - TPE - MOC

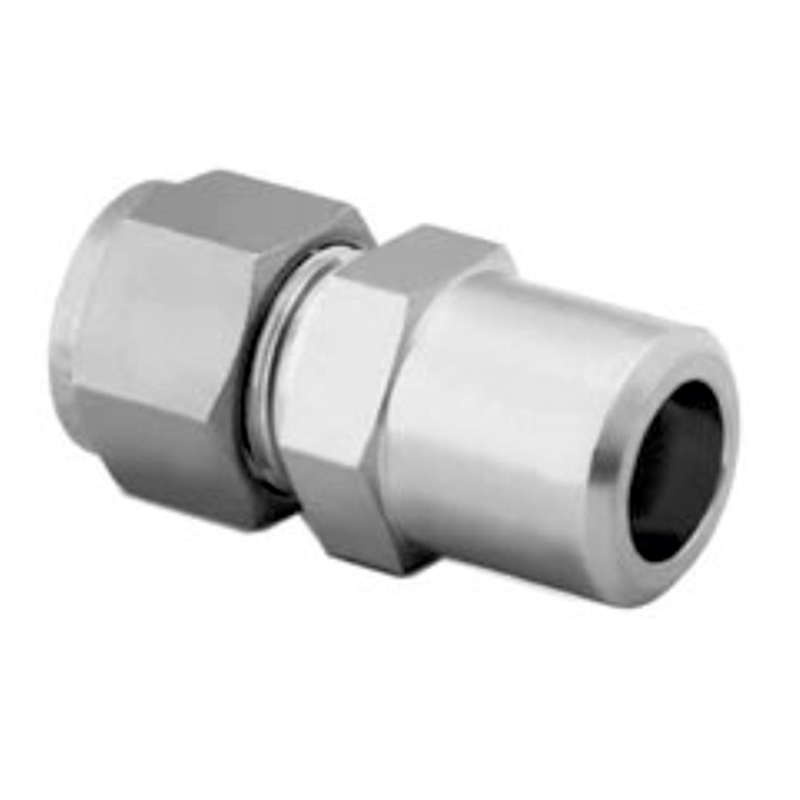

PIPE BUTT WELD CONNECTOR (PBWC)
×
End Connection
: TOD X PBW
Tube OD Size (TOD)
: From 1/8" OD to 2" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Pipe Butt Weld End Size (PBW)
: From 1/8" NB to 2" NB
Type
: Double ferrule design with nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: PBWC - TOD - PBW - MOC

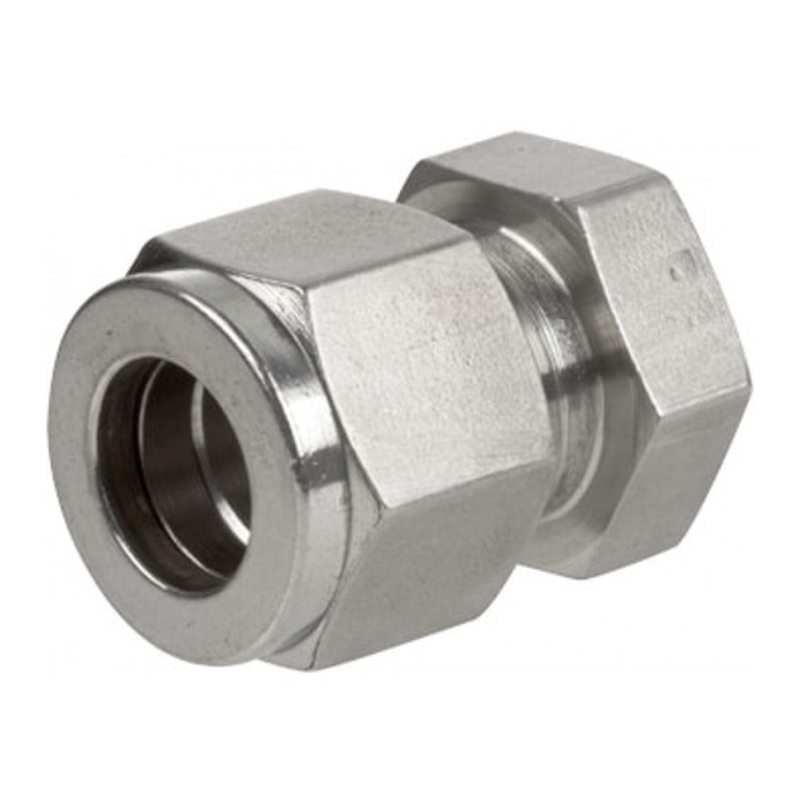

END CLOSURE FOR TUBE (ECT)
×
End Connection
: TOD
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: ECT - TOD - MOC

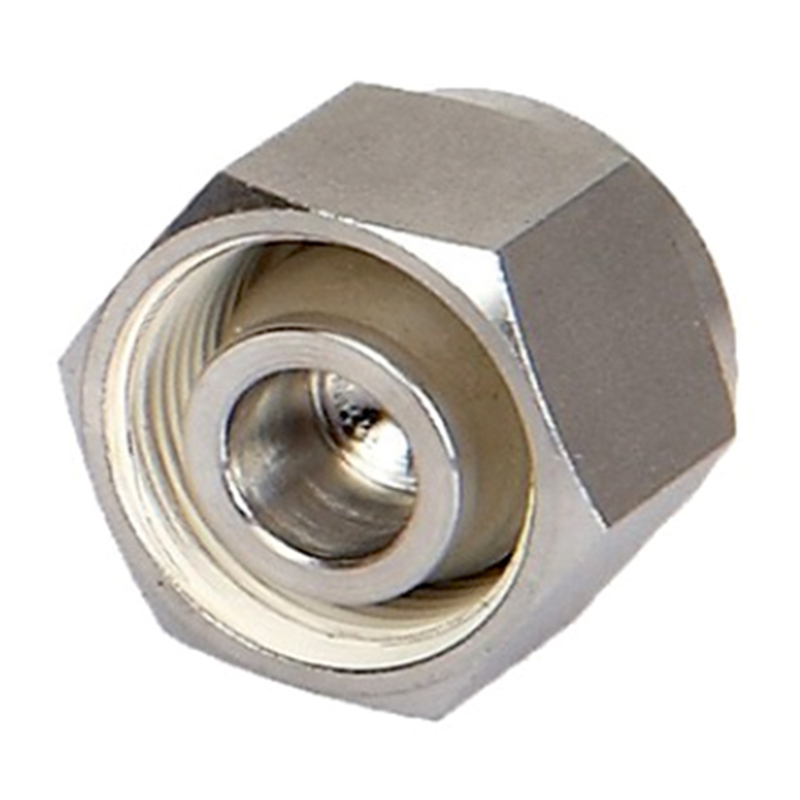

END CLOSURE FOR FITTINGS (ECF)
×
End Connection
: TOD
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: ECF - TOD - MOC

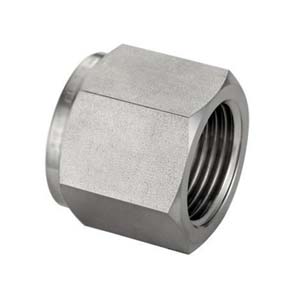

SPARE NUT (SN)
×
End Connection
: TOD
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Type
: Double ferrule design with Nut
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: SN - TOD - MOC

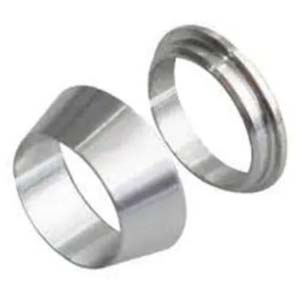

SPARE FERRULE SET (SF)
×
End Connection
: TOD
Tube OD Size (TOD)
: From 1/8" OD to 1.5" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Type
: Double ferrule design with Nut
MOC
Model Code (*)
: SS316, 304 / Alloy 400, 600, C276 etc..
