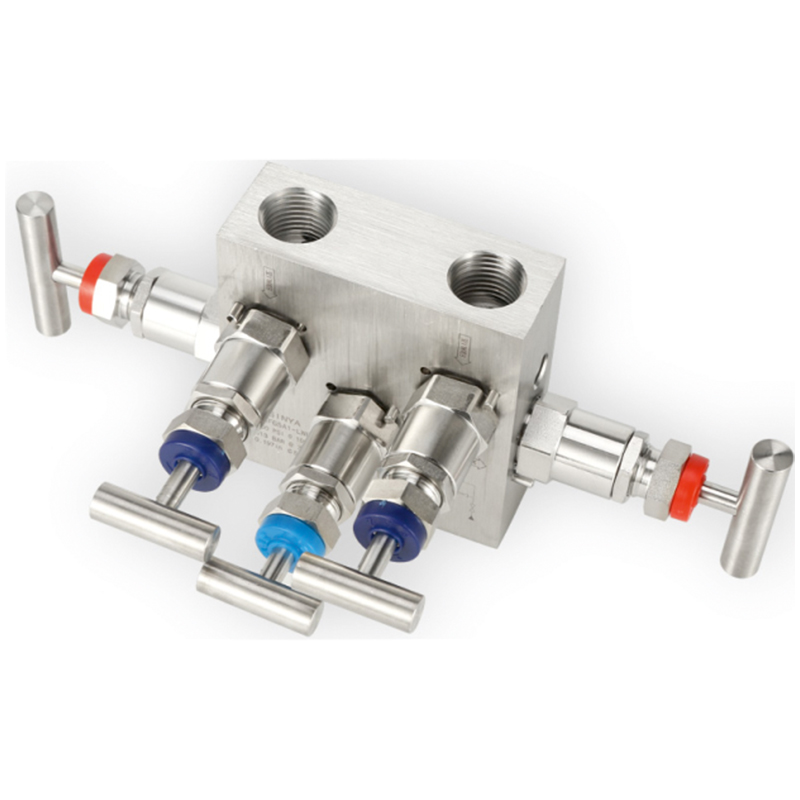

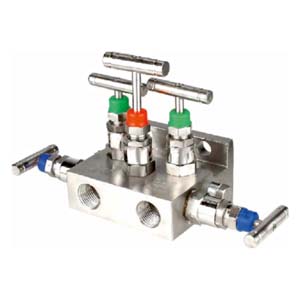

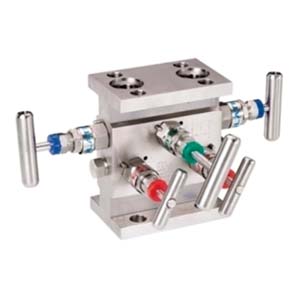

5 Way Manifold Valve

End Connection	: FPT
Female Pipe Thread Size (FPT/MPT)	: 1/4" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure	: Upto 6000 PSI / 10000 PSI
Gland Packing	: Standard PTFE ( Grafoil for high temperature)
Type	: Remote Mounting Type
MOC	: SS316, 304 / Alloy 400, 600, C276 etc..
*Model Code ()**	: 5VMR - FPT - FPT - DRAIN - MOC

End Connection	: FPT
Female Pipe Thread Size (FPT/MPT)	: 1/4" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Out / Process Connection	: Transmitter Flange ( TF )
Test Pressure	: Upto 6000 PSI / 10000 PSI
Gland Packing	: Standard PTFE ( Grafoil for high temperature)
Type	: Transmitter Mounting Type
MOC	: SS316, 304 / Alloy 400, 600, C276 etc..
*Model Code ()**	: 5VMT - FPT - TF - DRAIN - MOC

End Connection	: TF
In & Out / Process Connection	: Transmitter Flange ( TF )
Test Pressure	: Upto 6000 PSI / 10000 PSI
Gland Packing	: Standard PTFE ( Grafoil for high temperature)
Type	: Transmitter Mounting Type
MOC	: SS316, 304 / Alloy 400, 600, C276 etc..
*Model Code ()**	: 5VMH - FT - TF - DRAIN - MOC
