Pressure Gauge Accessories for Instrumentation Valves Suppliers & Manufacturers

Name: Pressure Gauge Accessories for Instrumentation Valves
Rating: 5 (12 reviews)

Type	: Piston Type / Diaphragm Type
End Connection	: FPT x MPT
Female Pipe Thread Size (FPT/MPT)	: 1/4" to 1/2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Pressure Range	: 0.6 bar upto 400 bar
Packing Seals	Viton ‘O’ Ring
MOC	: SS316, 304 / Alloy 400, 600, C276 etc..
*Model Code ()**	: GS- FPT - MPT - MOC

End Connection	: FPT x MPT
Female Pipe Thread Size (FPT/MPT)	: 1/4" to 1/2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Pressure Rating	: upto 6000 PSI
Packing Seals	Viton ‘O’ Ring
MOC	: SS316, 304 / Alloy 400, 600, C276 etc..
*Model Code ()**	: SN - FPT - MPT - MOC

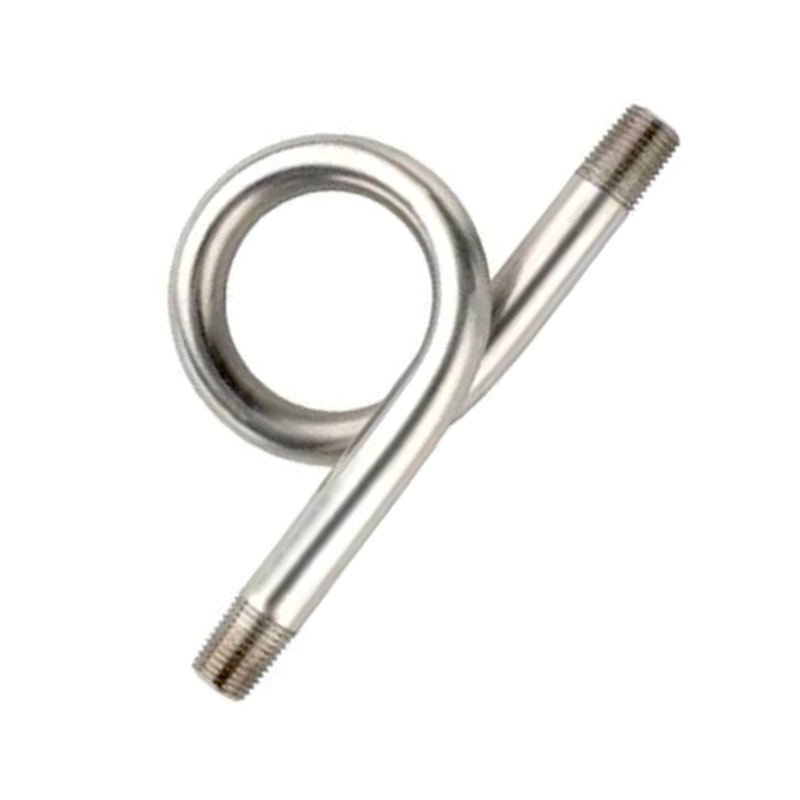

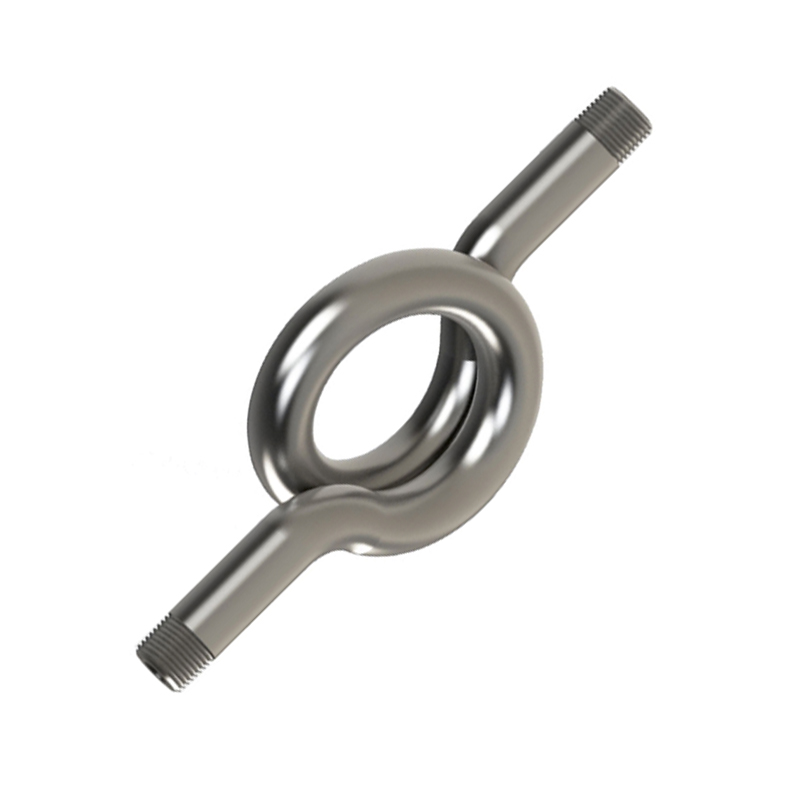

Type	: Pig Tail Type
Female Pipe Thread Size (FPT/MPT)	: 1/4" to 1/2" NPT Male / Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Pipe Size	: 1/4" up to 1/2" Sch. 40 / Sch. 80
Socket Weld End Connection (SW)	: 1/4" to 1/2" NB
MOC	: SS316, SS 304 & Carbon Steel (CS)
Special Certification	: IBR Certification on Request
*Model Code ()**	: SP-PT - FPT - MPT - MOC

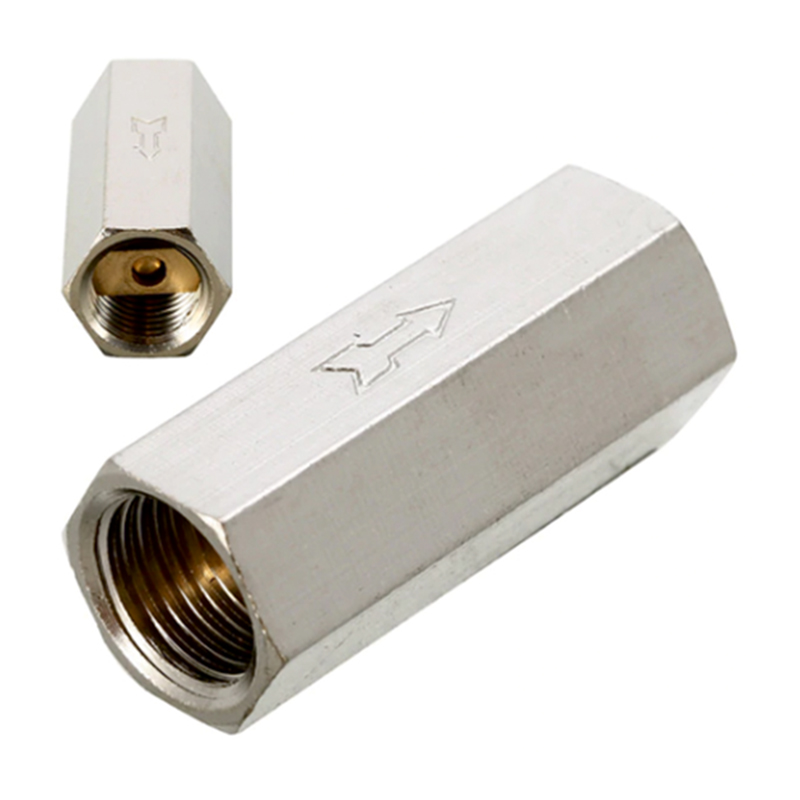

Type	: FPT x FPT / TOD X TOD
Tube OD Size (TOD)	: From 1/8" OD to 2" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Female Pipe Thread Size (FPT)	: 1/8" to 2" NPT ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure	: Upto 10000 PSI
Seal Ring	: Viton / Neoprene / Silicon
MOC	: SS316, SS304, Alloy 400, 600, C276 etc..
*Model Code ()**	: NRV - FPT - FPT - MOC or NVA - TOD - TOD - MOC

End Connection	: FPT x FPT or MTP x FTP
Female Pipe Thread Size (FPT/MPT)	: 1/4" to 1/2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure	: Upto 500 PSI
Seat Packing	: PTFE
MOC	: SS316, 304 / Alloy 400, 600, C276 etc..
*Model Code ()**	: GC2 - FPT - FPT - MOC
