Mono Flange Valve
download brochure
Home
Mono Flange Valve

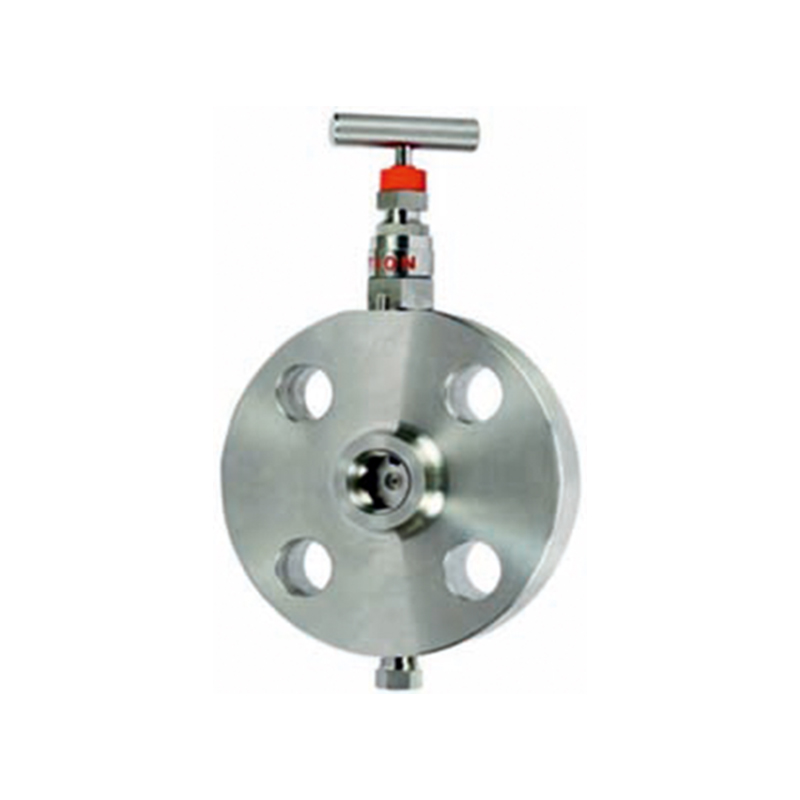

ISOLATION TYPE
Read More
BLOCK AND BLEED TYPE
Read More
DOUBLE BLOCK AND BLEED TYPE
Read More
ISOLATION TYPE
×
End Connection / Type
: FPT x FL / ISOLATION TYPE
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 1/2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Flange Connection (FL)
: 1/2" to 2" Flange / 150 to 2500 # / RF / RTJ
Flange Type (FT)
: ANSO B16.5 / DIN
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Optional
: NACE Certification / Oxygen Service
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: MF1 - FPT - FL - DRAIN - OPTIONAL - MOC

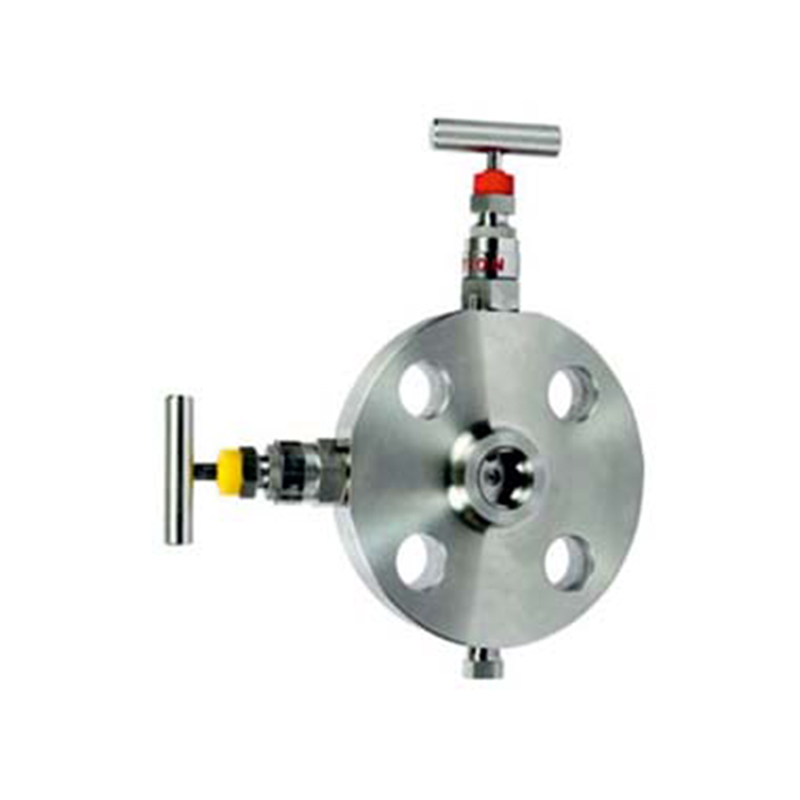

BLOCK AND BLEED TYPE
×
End Connection / Type
: FPT x FL / BLOCK AND BLEED TYPE
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 1/2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Flange Connection (FL)
: 1/2" to 2" Flange / 150 to 2500 # / RF / RTJ
Flange Type (FT)
: ANSO B16.5 / DIN
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Optional
: NACE Certification / Oxygen Service
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: MF2 - FPT - FL - DRAIN - OPTIONAL - MOC
DOUBLE BLOCK AND BLEED TYPE
×
End Connection / Type
: FPT x FL / DOUBLE BLOCK AND BLEED TYPE
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 1/2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Flange Connection (FL)
: 1/2" to 2" Flange / 150 to 2500 # / RF / RTJ
Flange Type (FT)
: ANSO B16.5 / DIN
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Optional
: NACE Certification / Oxygen Service
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: MF3 - FPT - FL - DRAIN - OPTIONAL - MOC
